| 电池型号 | 额定电压 (V) | 额定容量 C10 (AH) | CCA | 电池尺寸 | 电池重量 | 端子类型 | |||||
| @ | mm | in | |||||||||
| (-18℃) | L | W | H | L | W | H | Kg | ||||

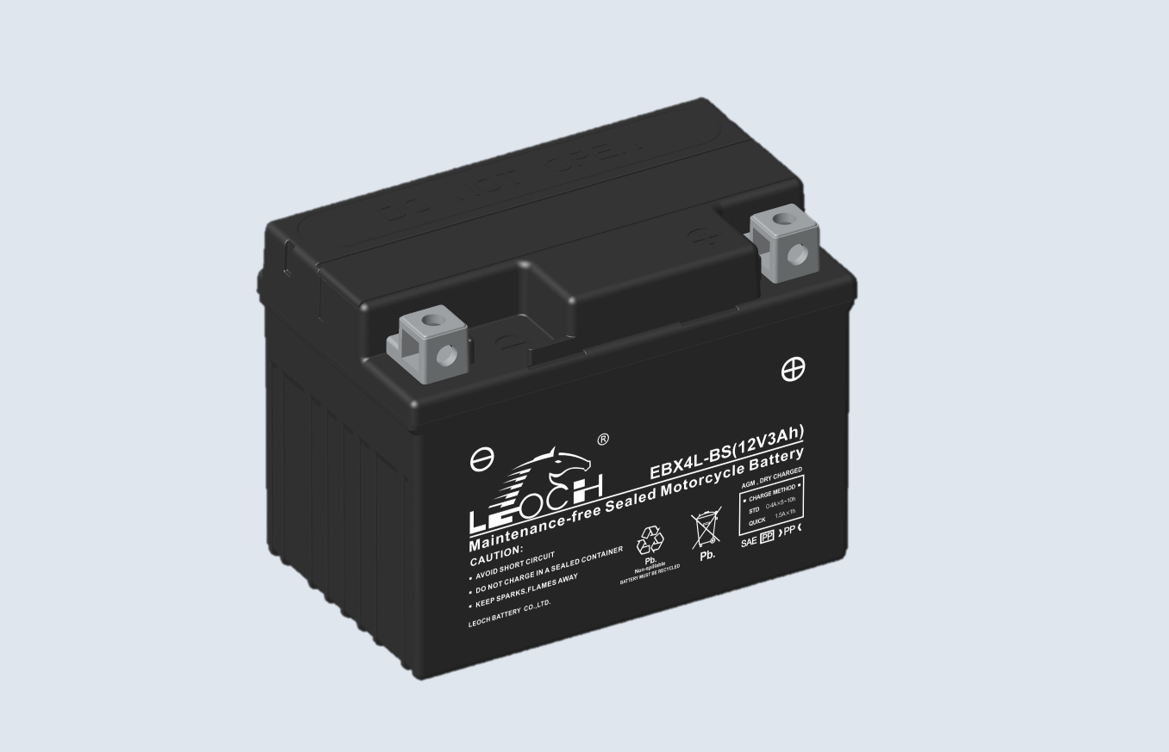

| EBX4L-BS | 12 | 3 | 50 | 113 | 70 | 85 | 4 4/9 | 2 3/4 | 3 1/3 | 1.39 | A |
| EBX4L-BS(J) | 12 | 3 | 40 | 113 | 70 | 85 | 4 4/9 | 2 3/4 | 3 1/3 | 1.31 | A |
| EBZ5L-BS | 12 | 3.5 | 50 | 113 | 70 | 85 | 4 4/9 | 2 3/4 | 3 1/3 | 1.39 | A |
| EBZ4.5L-BS | 12 | 4 | 55 | 113 | 70 | 85 | 4 4/9 | 2 3/4 | 3 1/3 | 1.51 | A |
| EBX5L-BS | 12 | 4 | 70 | 113 | 70 | 105 | 4 4/9 | 2 3/4 | 4 1/7 | 1.83 | A |
| EBX5L-BS(J) | 12 | 4 | 55 | 113 | 70 | 105 | 4 4/9 | 2 3/4 | 4 1/7 | 1.67 | A |
| EBZ7L-BS | 12 | 6 | 90 | 113 | 70 | 105 | 4 4/9 | 2 3/4 | 4 1/7 | 2.14 | A |
| EBX7L-BS | 12 | 6 | 85 | 113 | 70 | 130 | 4 4/9 | 2 3/4 | 5 1/8 | 2.36 | A |
| EBX7L-BS(J) | 12 | 6 | 70 | 113 | 70 | 130 | 4 4/9 | 2 3/4 | 5 1/8 | 2.17 | A |
| EBX7A-BS-I | 12 | 6 | 100 | 150 | 87 | 93 | 6 | 3 3/7 | 3 2/3 | 2.29 | A |
| EB7B-BS | 12 | 6.5 | 90 | 150 | 66 | 93 | 6 | 2 3/5 | 3 2/3 | 2.29 | A |
| EB7B-BS(J) | 12 | 6.5 | 70 | 150 | 66 | 93 | 6 | 2 3/5 | 3 2/3 | 2.15 | A |
| EBX9-BS | 12 | 8 | 120 | 150 | 87 | 105 | 6 | 3.43 | 4 1/7 | 3.04 | A |
| EBX9-BS(J) | 12 | 8 | 100 | 150 | 87 | 105 | 6 | 3 3/7 | 4 1/7 | 2.85 | A |
| EB9A-BS | 12 | 9 | 100 | 135 | 75 | 139 | 5 1/3 | 3 | 5 1/2 | 3.1 | A |
| EB9A-BS(J) | 12 | 8.5 | 70 | 135 | 75 | 139 | 5 1/3 | 2.95 | 5 1/2 | 2.87 | A |
| EB9A-BS-1 | 12 | 9 | 100 | 135 | 75 | 139 | 5 1/3 | 2.95 | 5 1/2 | 3.08 | B |
| EB9B-BS | 12 | 8 | 115 | 150 | 70 | 105 | 6 | 2.76 | 4 1/7 | 2.78 | A |
| EB9B-BS(J) | 12 | 8 | 95 | 150 | 70 | 105 | 6 | 2 3/4 | 4 1/7 | 2.6 | A |
| EBZ10-BS | 12 | 8.6 | 150 | 150 | 88 | 93 | 6 | 3 1/2 | 3 2/3 | 3.11 | A |
| EBZ12-BS | 12 | 11 | 210 | 150 | 88 | 110 | 6 | 3 1/2 | 4 1/3 | 3.78 | A |
| EBZ12-BS(J) | 12 | 11 | 170 | 150 | 88 | 110 | 6 | 3 1/2 | 4 1/3 | 3.59 | A |
| EBZ14-BS | 12 | 11.2 | 220 | 150 | 88 | 110 | 6 | 3 1/2 | 4 1/3 | 3.8 | A |
| EBX12-BS | 12 | 10 | 180 | 150 | 87 | 130 | 6 | 3 3/7 | 5 1/8 | 3.86 | A |
| EBX12-BS(J) | 12 | 10 | 130 | 150 | 87 | 130 | 6 | 3 3/7 | 5 1/8 | 3.58 | A |
| EB12A-BS | 12 | 10 | 145 | 150 | 88 | 105 | 6 | 3 1/2 | 4 1/7 | 3.29 | A |
| EB12B-BS | 12 | 10 | 165 | 150 | 70 | 130 | 6 | 2 3/4 | 5 1/8 | 3.55 | A |
| EB12B-BS(J) | 12 | 10 | 120 | 150 | 70 | 130 | 6 | 2 3/4 | 5 1/8 | 3.36 | A |
| EBX14L-BS | 12 | 12 | 200 | 150 | 87 | 145 | 6 | 3 3/7 | 5 5/7 | 4.37 | A |
| EBX14L-BS(J) | 12 | 12 | 160 | 150 | 87 | 145 | 6 | 3 3/7 | 5 5/7 | 4.06 | A |

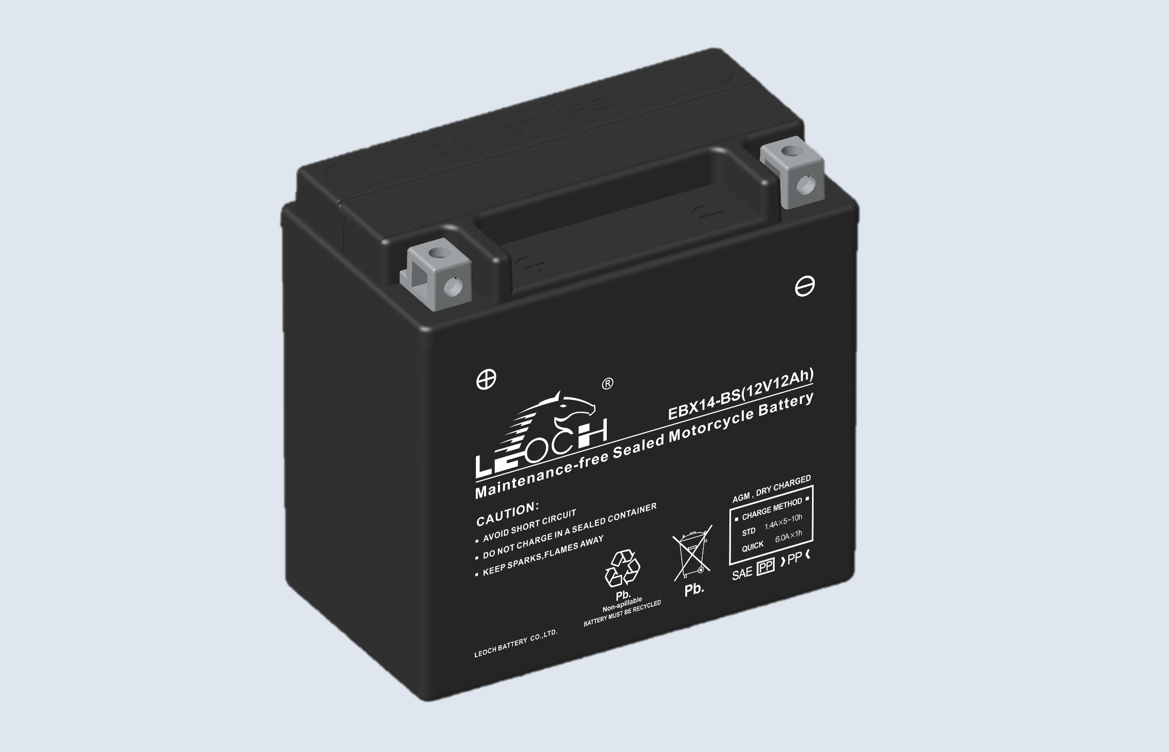

| EBX14-BS | 12 | 12 | 200 | 150 | 87 | 145 | 6 | 3 3/7 | 5 5/7 | 4.37 | A |
| EBX14-BS(J) | 12 | 12 | 160 | 150 | 87 | 145 | 6 | 3 3/7 | 5 5/7 | 4.06 | A |
| EB14B-BS | 12 | 12 | 175 | 150 | 70 | 145 | 6 | 2 3/4 | 5 5/7 | 4.11 | A |
| EB14B-BS(J) | 12 | 12 | 150 | 150 | 70 | 145 | 6 | 2 3/4 | 5 5/7 | 3.89 | A |
| EBX14AHL-BS | 12 | 12 | 210 | 133 | 90 | 164 | 5 1/4 | 3 1/2 | 6 1/2 | 4.42 | A |
| EBX14AHL-BS(J) | 12 | 12 | 170 | 133 | 90 | 164 | 5 1/4 | 3 1/2 | 6 1/2 | 4.24 | A |
| EBX14AH-BS | 12 | 12 | 210 | 133 | 90 | 164 | 5 1/4 | 3 1/2 | 6 1/2 | 4.42 | A |
| EBX14AH-BS(J) | 12 | 12 | 170 | 133 | 90 | 164 | 5 1/4 | 3 1/2 | 6 1/2 | 4.24 | A |
| EBX14AH-BS-PW | 12 | 12 | 210 | 133 | 90 | 174 | 5 1/4 | 3 1/2 | 6 6/7 | 4.47 | A |
| EBX16-BS | 12 | 14 | 230 | 150 | 87 | 161 | 6 | 3 3/7 | 6 1/3 | 4.99 | A |
| EBX20L-BS | 12 | 18 | 270 | 175 | 87 | 155 | 6 8/9 | 3 3/7 | 6 1/9 | 5.94 | A |
| EBX20L-BS(J) | 12 | 18 | 240 | 175 | 87 | 155 | 6 8/9 | 3 3/7 | 6 1/9 | 5.62 | A |
| EBX20-BS | 12 | 18 | 270 | 175 | 87 | 155 | 6 8/9 | 3 3/7 | 6 1/9 | 5.94 | A |
| EBX20-BS(J) | 12 | 18 | 240 | 175 | 87 | 155 | 6 8/9 | 3 3/7 | 6 1/9 | 5.62 | A |
| EBX20HL-BS | 12 | 18 | 310 | 175 | 87 | 155 | 6 8/9 | 3 3/7 | 6 1/9 | 5.94 | A |
| EBX20H-BS | 12 | 18 | 310 | 175 | 87 | 155 | 6 8/9 | 3 3/7 | 6 1/9 | 5.96 | A |
| EBX20CH-BS | 12 | 18 | 230 | 150 | 87 | 161 | 6 | 3 3/7 | 6 1/3 | 5.53 | A |
| EBX30L-BS | 12 | 30 | 385 | 166 | 126 | 173 | 6 1/2 | 5 | 6 4/5 | 9.48 | A |
